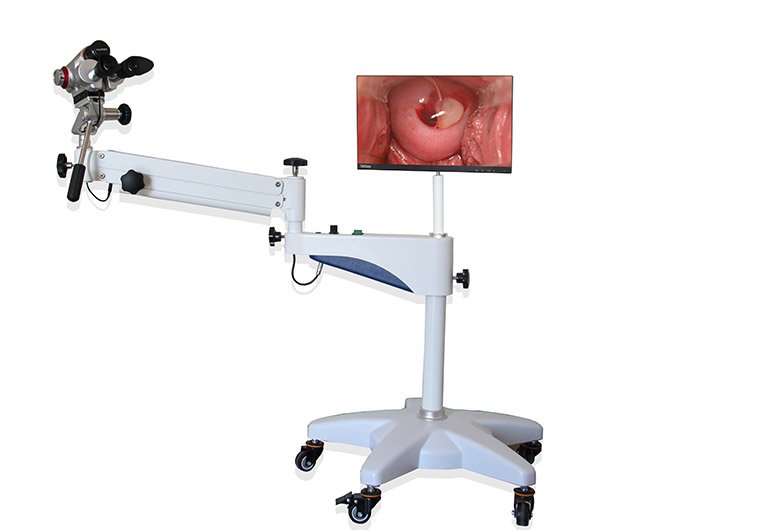

YDJ-2311 Colposcope

Excellent apochromatic opticsdesign ensures the reduction and saturation of image color and improves the resolution, contrast and view depth of image
3-step magnification (3.75x-7.5x-15x) provides larger magnifying range and more selection on magnification to meet the requirement of your practice
LED Illumination is for long life & low cost. It provides pure white color light similar to the sun light to show the real color
Built-in 1080P HD camera, FULL HD real-time imagecan be output to a TV set directly or inputted into a monitor

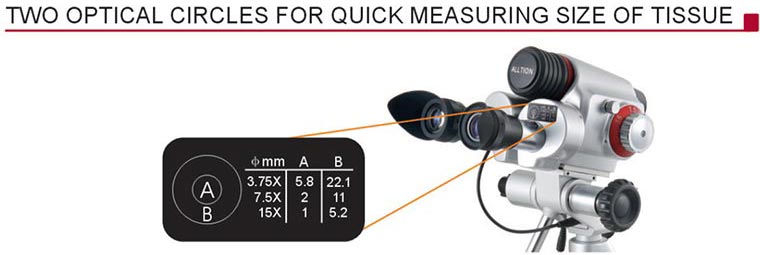

Come with lesions optical measurementfor quick measuring size of tissue
Integrated green filtercan help you recognize blood vessels
Adjustable balanced spring arm is for easily maneuver
Ergonomic design for long time precision operation

Inquiry

ISO13485:2016

quality certification

CE certification

FDA certification

YDJ series vaginal microscope is a precision optical instrument specially developed for gynecological examination and diagnosis. Due to the magnification of the instrument, the instrument can clearly find vaginal lesions that cannot be observed with the naked eye, which greatly improves the accuracy of diagnosis

Performance parameter

Parameters/Model	YDJ-2311
Observation angle	Straight binocular tube
Magnification of eyepiece	16.7X
Rang of Papillary distance	53mm-80mm
Diopter adjustment range	±6D
Large objective lens	F=300mm
Magnification changer	3-step magnification:3.75X,7.5X,15X
Total magnification	3.75X,7.5X,15X
Field of view	Ф79mm,Ф39mm,Ф19mm corresponding for 3-step magnification 3.75X,7.5X,15X
Depth of field	40mm,10mm,5mm corresponding for 3-step magnification 3.75X,7.5X,15X
Linear field	19mm-79mm
Video solution	Built-in 1080P HD camera
Fine focusing distance	40mm
Illumination system	10W Coxial LED illuminator with brightness adjustment. Illumination >40,000LX. life time is over 50,000 hours
Filter	Built-in blue filer
Balanced arm	Adjustable and re-settable weight
Stand	5-star base
Input power	Adapter output：DC12V/3A；Power：36W；
Weight per unit	45KGS 2CTNS/SET
Unique feature	Lesions optical measurement
