AC-2311DA Colposcope

Total magnification 3.75x, 7.5x, 15x for 3-step models and 7.5x for single magnification models
300mm focal length
Field of View: 79mm, 39mm, 19mm dia. For 3-step magnification models and 39mm for single magnification models
Depth Field: 4.5mm, 1.13mm, 0.76mm for 3 step magnification models and 1.13mm for single magnification models
Light intensity: > 30,000 LUX
Individually adjustable eyepiece 16.7x

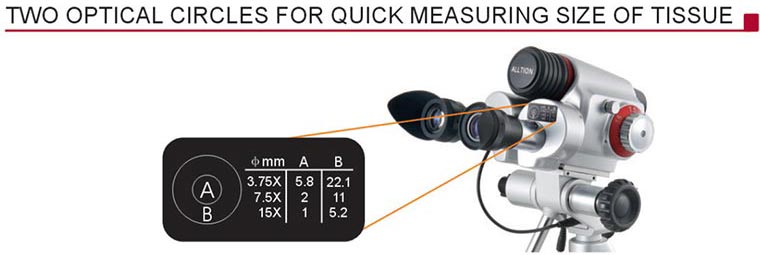

Right eyepiece with built-in two circles for you to measure the size of the problem you see
Built-in rheostat for brightness adjustment
User-selectable built-in green filter for enhanced contrast
LED buib is easily changeable
Working Height 975mm to 1135mm
Fine focus adjustment Handles
Two ( Gross / Fine ) height adjustment Handles
Unit is completely assembled and ready for use once power is on
Main Power Suppy: 100V to 240V

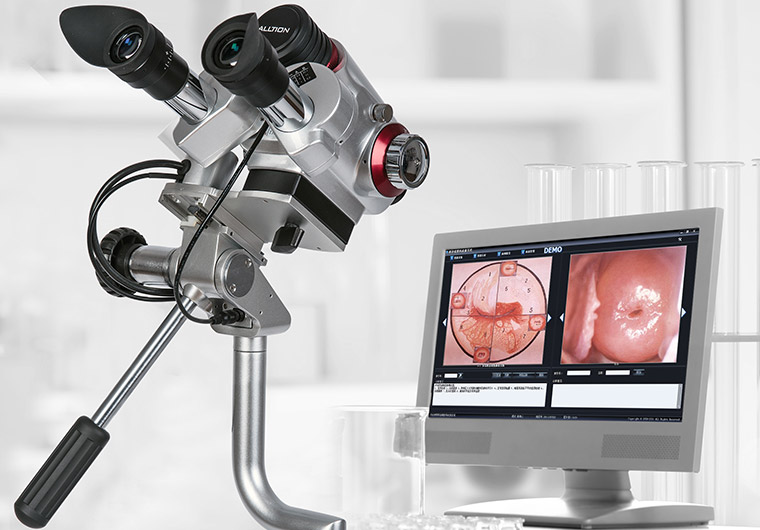

1080P Full HD Real-time output of image

Inquiry

ISO13485:2016

quality certification

CE certification

FDA certification

Colposcope

YDJ series vaginal microscope is a precision optical instrument specially developed for gynecological examination and diagnosis. Due to the magnification of the instrument, the instrument can clearly find vaginal lesions that cannot be observed with the naked eye, which greatly improves the accuracy of diagnosis
